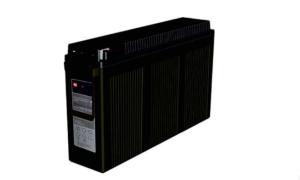

Long Floating Life 12V Telecom Battery 170AH Front Access Terminals

Model Number : 12DF170

Prodcut Name : 12DF170

Capacity : 170Ah

Voltage : 12V

Application : UPS,Telecom, IDC

Dimension (mm) : L560mm x W125mm x H316mm

Approx. Weight : 51.2 kg (112.8 lbs)

Terminal Type : Female Copper Insert M8 (torque: 10~12N.m)

Internal Resistance : Approx. 0.0043 Ohm (fully charged)

MOQ : 10 Pcs

Price : Negotiable

Packaging Details : Box/carton(standard package)

Delivery Time : 30 DAYS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1800000 PCS/YEAR

Contact Now

12 V 170AH Lead-acid Batteries with Long Life of 12 Floating Charging Conditions,L560mm x W125mm x H316mm

Product Overview

The HRESYS DF (Duration Front) series VRLA batteries is especially designed for telecommunication

with 12+ years float design life. By combining the newly developed paste formula with up-to-date AGM

structures, the series meet latest IEC, British and Telcordia standards. Front Access connection and

centralized venting system of DF series for fast, safety installation and maintenance.

Features and Benefits

- 12 years long floating life design
- the warranty terms are based on different application.
- Front access terminals allowing reliable and versatile connections
- Long and Narrow shape fits with standard 19” and 23” cabinets
- Mainly used in Emergency Power Supply
- 30% residual value for recycle
- Reliable seal performance, recombination efficiency reach 99%
- With tin-coated red copper insert to reduce internal resistance, and with good conductivity
- Special patent grid alloy

Complied standards

- IEC 60896-21/22

- GB/T19638

- YD/T 799

- JIS C8704

- BS6290 part 4

Management and Product Certificates

- ISO9001:2015

- ISO14001:2015

- OHSAS18001:2007

- CE Certificate

Product Specification

Nominal Voltage (V)	12 (6 cells per unit)
Nominal Capacity (25 C)	170 Ah @ 10HR-rate (to 1.80Vpc)
Dimension (mm)	L560mm x W125mm x H316mm
Approx. Weight	51.2 kg (112.8 lbs)
Terminal Type	Female Copper Insert M8 (torque: 10~12N.m)
Internal Resistance	Approx. 0.0043 Ohm (fully charged)
Max. Charge Current	42.5 A
Max. Discharge Current (5S)	1080 A
Short Circuit Current	2750 A
Self Discharge	Approx. 2.5% per month @ 20℃
Ambient Temperature	Discharge: -20~60℃ Charge: -20~55℃ Storage: -20~45℃
Float Charge Voltage	13.5V/block @25℃(-3mV/ cell/ C)
Сycle Use Charge Voltage	14.1V/block @25℃
Container Material	ABS UL ( 94-V0 optional)

Battery Dimension

Performance Curves

Long Floating Life 12V Telecom Battery 170AH Front Access Terminals

Factory Overview
